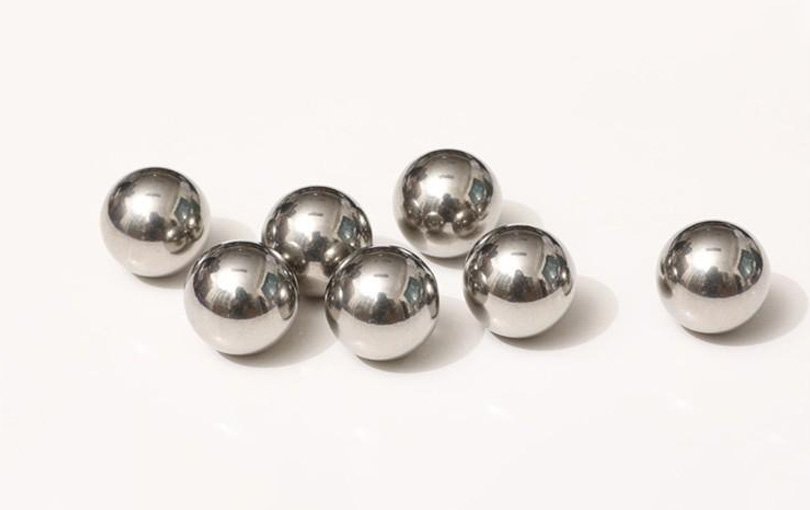

430 Stainless Steel Ball
Production Range：
● 0.5MM-82.55MM
Production Grade:
● G40-G1000
Applications：
● Medical devices ● Cosmetic agitator
● Dispenser pumps ● Aerospace Components
● Stainless Steel Bearing ● Valves
Product Details
430 stainless steel is a widely used material that primarily consists of chromium and nickel. Renowned for its excellent corrosion resistance and oxidation resistance, it is ideally suited for use in harsh environments exposed to moisture and corrosive elements.
EDE Company produces high-precision and stable-quality 430 stainless steel balls, which are widely used in medical equipment, automobiles, home appliances, decoration, and other industries.
| Approximate material | |||||||||
| Material | Number Designtion | Chemical Composition （%） | |||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | ||
| 430 X6Cr17 10Cr17 | 1.4016 | 0 - 0.12 | 0 - 1 | 1 | 0 - 0.04 | 0 - 0.03 | 16 - 18 | / | / |
| DIN 5401-2002 | ||||||||
| Dimensional and formt tolerance and surface roughness | ||||||||
| Grade | Nominal Size | Limit deviations | tDws | ∆RSw(≤) | Ra(≤) | VDwL(≤) | IG | Preferred gauges values |
| VDws (≤) | ||||||||
| (mm) | (μm) | (μm) | (μm) | (μm) | (μm) | (μm) | (μm) | |
| G 3 | 0 ~ 12.7 | ± 5.32 | 0.08 | 0.08 | 0.01 | 0.13 | 0.5 | -5 ~ +5 |
| G 5 | 0 ~ 12.7 | ± 5.63 | 0.13 | 0.13 | 0.014 | 0.25 | 1 | -5 ~ +5 |
| G 10 | 0 ~ 25.4 | ± 9.75 | 0.25 | 0.25 | 0.02 | 0.5 | 1 | -9 ~ +9 |
| G 16 | 0 ~ 25.4 | ± 11.4 | 0.4 | 0.4 | 0.025 | 0.8 | 2 | -10 ~ +10 |
| G 20 | 0 ~ 38.1 | ± 11.5 | 0.5 | 0.5 | 0.032 | 1 | 2 | -10 ~ +10 |
| G 28 | 0 ~ 50.8 | ± 13.7 | 0.7 | 0.7 | 0.05 | 1.4 | 2 | -12 ~ +12 |
| G 40 | 0 ~ 100 | ± 19 | 1 | 1 | 0.06 | 2 | 4 | -16 ~ +16 |
| G 80 | 0 ~ 100 | ± 14 | 2 | 2 | 0.1 | * | 4 | -12 ~ +12 |
| G 100 | 0 ~ 150 | ± 47.5 | 2.5 | 2.5 | 0.1 | 5 | 10 | -40 ~ +40 |
| G 200 | 0 ~ 150 | ± 72.5 | 5 | 5 | 0.15 | 10 | 10 | -60 ~ +60 |
| G 300 | 0 ~ 25.4 | ± 70 | 10 | 10 | 0.2 | * | 20 | -60 ~ +60 |
| G300 | 25.4 ~ 50.8 | ± 105 | 15 | 15 | 0.2 | * | 30 | -90 ~ +90 |
| G 300 | 50.8 ~ 75 | ± 140 | 20 | 20 | 0.2 | * | 40 | -120 ~ +120 |
| G 500 | 0 ~ 25.4 | ± 75 | 25 | 25 | * | * | 50 | -50 ~ +50 |
| G 500 | 25.4 ~ 50.8 | ± 112.5 | 25 | 25 | * | * | 75 | -75 ~ +75 |
| G 500 | 50.8 ~ 75 | ± 150 | 25 | 25 | * | * | 100 | -100 ~ +100 |
| G 500 | 75 ~ 100 | ± 187.5 | 32 | 32 | * | * | 125 | -125 ~ +125 |
| G 500 | 100 ~ 125 | ± 225 | 38 | 38 | * | * | 150 | -150 ~ +150 |
| G 500 | 125 ~ 150 | ± 262.5 | 44 | 44 | * | * | 175 | -175 ~ +175 |
| G 600 | all | ± 200 | * | * | * | * | * | * |
| G 700 | all | ± 1000 | * | * | * | * | * | * |
| ABMA Std. 10A - 2001 | |||||
| Grade | VDws(≤) | ∆RSw(≤) | Ra(≤) | VDwL(≤) | (μm) |
| (μm) | (μm) | (μm) | (μm) | ||
| G3A | 0.08 | 0.08 | 0.012 | 0.13 | * |
| G5A | 0.13 | 0.13 | 0.02 | 0.25 | * |
| G10A | 0.25 | 0.25 | 0.025 | 0.5 | * |
| G16A | 0.4 | 0.4 | 0.025 | 0.8 | * |
| G24A | 0.6 | 0.6 | 0.05 | 1.2 | * |
| G48A | 1.2 | 1.2 | 0.08 | 2.4 | * |
| G100A | 2.5 | 2.5 | 0.125 | 5 | ±12.5 |
| G200A | 5 | 5 | 0.2 | 10 | ±25 |
| G500A | 13 | 13 | * | 25 | ±50 |
| G1000A | 25 | 25 | * | 50 | ±125 |
| G2000A | 50 | 50 | * | 100 | ±250 |
