Production Range：
● 0.4MM-50.8MM
Production Grade:
● G40-G1000
Applications：
● Aerosol Valves ● Dispenser Valves
● Trigger Sprayers ● Finger Pumps
● Medical devices ● Food Machinery
● Animal Feeders

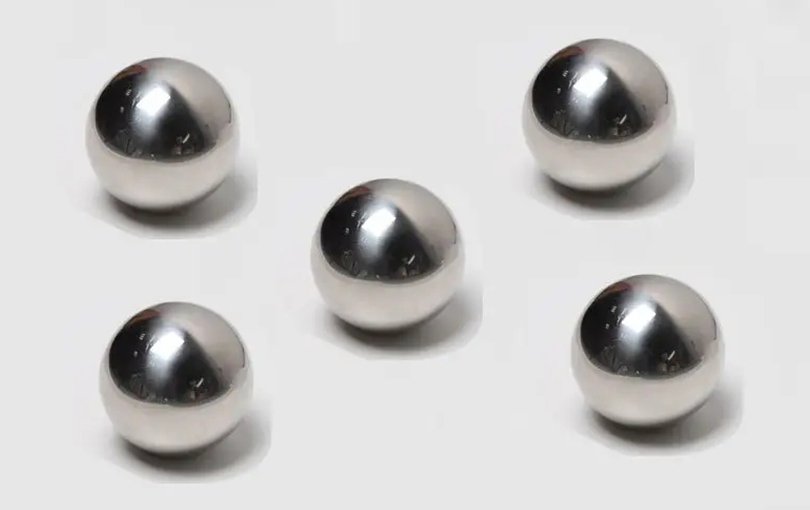

304L stainless steel is a low-carbon variant of 304 austenitic stainless steel. Owing to the difference in carbon content, 304L stainless steel may demonstrate superior corrosion resistance in certain scenarios.
EDE Company, catering to the diverse needs of our customers, is capable of producing both magnetic and non-magnetic (more accurately, weakly magnetic) 304L stainless steel balls.
Additionally, we offer environmentally friendly passivation treatment services, significantly enhancing the performance of our products. These high-quality stainless steel balls are widely used in industries such as cosmetics, healthcare, and food processing.
| Approximate material | |||||||||
| Material | Number Designtion | Chemical Composition （%） | |||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | ||
| 304L X2CrNi 19-11 (X2CrNi 18-9) 022Cr19Ni10 | 1.4306 | 0 - 0.03 | 0 - 1 | 0 - 2 | 0 - 0.045 | 0 - 0.03 | 18 - 20 | 8 - 12 | / |
| DIN 5401-2002 | ||||||||
| Dimensional and formt tolerance and surface roughness | ||||||||
| Grade | Nominal Size | Limit deviations | tDws | ∆RSw(≤) | Ra(≤) | VDwL(≤) | IG | Preferred gauges values |
| VDws (≤) | ||||||||
| (mm) | (μm) | (μm) | (μm) | (μm) | (μm) | (μm) | (μm) | |
| G 3 | 0 ~ 12.7 | ± 5.32 | 0.08 | 0.08 | 0.01 | 0.13 | 0.5 | -5 ~ +5 |
| G 5 | 0 ~ 12.7 | ± 5.63 | 0.13 | 0.13 | 0.014 | 0.25 | 1 | -5 ~ +5 |
| G 10 | 0 ~ 25.4 | ± 9.75 | 0.25 | 0.25 | 0.02 | 0.5 | 1 | -9 ~ +9 |
| G 16 | 0 ~ 25.4 | ± 11.4 | 0.4 | 0.4 | 0.025 | 0.8 | 2 | -10 ~ +10 |
| G 20 | 0 ~ 38.1 | ± 11.5 | 0.5 | 0.5 | 0.032 | 1 | 2 | -10 ~ +10 |
| G 28 | 0 ~ 50.8 | ± 13.7 | 0.7 | 0.7 | 0.05 | 1.4 | 2 | -12 ~ +12 |
| G 40 | 0 ~ 100 | ± 19 | 1 | 1 | 0.06 | 2 | 4 | -16 ~ +16 |
| G 80 | 0 ~ 100 | ± 14 | 2 | 2 | 0.1 | * | 4 | -12 ~ +12 |
| G 100 | 0 ~ 150 | ± 47.5 | 2.5 | 2.5 | 0.1 | 5 | 10 | -40 ~ +40 |
| G 200 | 0 ~ 150 | ± 72.5 | 5 | 5 | 0.15 | 10 | 10 | -60 ~ +60 |
| G 300 | 0 ~ 25.4 | ± 70 | 10 | 10 | 0.2 | * | 20 | -60 ~ +60 |
| G300 | 25.4 ~ 50.8 | ± 105 | 15 | 15 | 0.2 | * | 30 | -90 ~ +90 |
| G 300 | 50.8 ~ 75 | ± 140 | 20 | 20 | 0.2 | * | 40 | -120 ~ +120 |
| G 500 | 0 ~ 25.4 | ± 75 | 25 | 25 | * | * | 50 | -50 ~ +50 |
| G 500 | 25.4 ~ 50.8 | ± 112.5 | 25 | 25 | * | * | 75 | -75 ~ +75 |
| G 500 | 50.8 ~ 75 | ± 150 | 25 | 25 | * | * | 100 | -100 ~ +100 |
| G 500 | 75 ~ 100 | ± 187.5 | 32 | 32 | * | * | 125 | -125 ~ +125 |
| G 500 | 100 ~ 125 | ± 225 | 38 | 38 | * | * | 150 | -150 ~ +150 |
| G 500 | 125 ~ 150 | ± 262.5 | 44 | 44 | * | * | 175 | -175 ~ +175 |
| G 600 | all | ± 200 | * | * | * | * | * | * |
| G 700 | all | ± 1000 | * | * | * | * | * | * |
| ABMA Std. 10A - 2001 | |||||
| Grade | VDws(≤) | ∆RSw(≤) | Ra(≤) | VDwL(≤) | (μm) |
| (μm) | (μm) | (μm) | (μm) | ||
| G3A | 0.08 | 0.08 | 0.012 | 0.13 | * |
| G5A | 0.13 | 0.13 | 0.02 | 0.25 | * |
| G10A | 0.25 | 0.25 | 0.025 | 0.5 | * |
| G16A | 0.4 | 0.4 | 0.025 | 0.8 | * |
| G24A | 0.6 | 0.6 | 0.05 | 1.2 | * |
| G48A | 1.2 | 1.2 | 0.08 | 2.4 | * |
| G100A | 2.5 | 2.5 | 0.125 | 5 | ±12.5 |
| G200A | 5 | 5 | 0.2 | 10 | ±25 |
| G500A | 13 | 13 | * | 25 | ±50 |
| G1000A | 25 | 25 | * | 50 | ±125 |
| G2000A | 50 | 50 | * | 100 | ±250 |
