Production Range：
● 1.0MM-80MM
Production Grade:
● G40-G1000
Applications：
● Caster wheel ● Slide
● Bearig ● Toy
● Grindig media

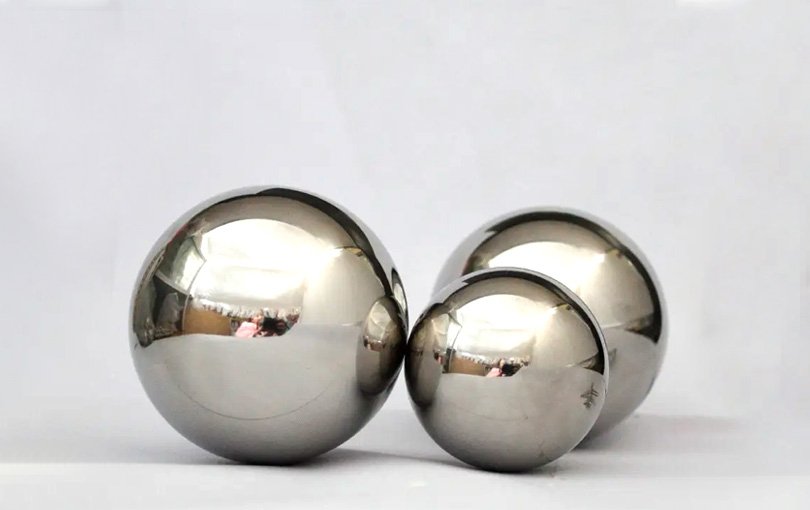

1015 carbon steel, as a high-quality carbon structural steel, is renowned for its high strength, excellent plasticity, and toughness. With its moderate carbon content, it exhibits superior performance in terms of strength and hardness while maintaining good processability and weldability.
EDE Company fully utilizes the many advantages of 1015 carbon steel, capable of manufacturing not only hardened balls but also soft balls, thus meeting the diverse needs of the market.
Additionally, EDE can provide environmentally friendly electroplating services tailored to the needs of our customers, thus meeting the requirements of various industries.
| Approximate material | |||||||||||
| Material | Number Designtion | Chemical Composition （%） | |||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | AS | N | ||
| 1010 C10 | 1.0301 1.1121 | 0.08 - 0.13 | / | 0.3 - 0.6 | 0 - 0.03 | 0 - 0.05 | / | / | / | / | / |
| Q195 | 0 - 0.12 | 0 - 0.3 | 0 - 0.5 | 0 - 0.035 | 0 - 0.04 | 0 - 0.3 | 0 - 0.3 | 0 - 0.3 | 0 - 0.08 | 0 - 0.008 | |
| 1015 C15 | 1.0401 1.1141 | 0.08 - 0.13 | / | 0.3 - 0.6 | 0 - 0.03 | 0 - 0.05 | / | / | 0 - 0.2 | / | / |
| Q235 | 0 - 0.22 | 0 - 0.35 | 0 - 1.4 | 0 - 0.045 | 0 - 0.05 | 0 - 0.3 | 0 - 0.3 | 0 - 0.3 | 0 - 0.08 | 0 - 0.008 | |
| 1085 C86D | 1.0616 | 0.8 - 0.93 | 0.15 - 0.35 | 0.7 - 1 | 0 - 0.03 | 0 - 0.05 | / | / | / | / | / |
| SWRH82B | 0.79 - 0.86 | 0.15 - 0.35 | 0.6 - 0.9 | 0 - 0.03 | 0 - 0.03 | / | / | / | / | / | |
| DIN 5401-2002 | ||||||||
| Dimensional and formt tolerance and surface roughness | ||||||||
| Grade | Nominal Size | Limit deviations | tDws | ∆RSw(≤) | Ra(≤) | VDwL(≤) | IG | Preferred gauges values |
| VDws (≤) | ||||||||
| (mm) | (μm) | (μm) | (μm) | (μm) | (μm) | (μm) | (μm) | |
| G 3 | 0 ~ 12.7 | ± 5.32 | 0.08 | 0.08 | 0.01 | 0.13 | 0.5 | -5 ~ +5 |
| G 5 | 0 ~ 12.7 | ± 5.63 | 0.13 | 0.13 | 0.014 | 0.25 | 1 | -5 ~ +5 |
| G 10 | 0 ~ 25.4 | ± 9.75 | 0.25 | 0.25 | 0.02 | 0.5 | 1 | -9 ~ +9 |
| G 16 | 0 ~ 25.4 | ± 11.4 | 0.4 | 0.4 | 0.025 | 0.8 | 2 | -10 ~ +10 |
| G 20 | 0 ~ 38.1 | ± 11.5 | 0.5 | 0.5 | 0.032 | 1 | 2 | -10 ~ +10 |
| G 28 | 0 ~ 50.8 | ± 13.7 | 0.7 | 0.7 | 0.05 | 1.4 | 2 | -12 ~ +12 |
| G 40 | 0 ~ 100 | ± 19 | 1 | 1 | 0.06 | 2 | 4 | -16 ~ +16 |
| G 80 | 0 ~ 100 | ± 14 | 2 | 2 | 0.1 | * | 4 | -12 ~ +12 |
| G 100 | 0 ~ 150 | ± 47.5 | 2.5 | 2.5 | 0.1 | 5 | 10 | -40 ~ +40 |
| G 200 | 0 ~ 150 | ± 72.5 | 5 | 5 | 0.15 | 10 | 10 | -60 ~ +60 |
| G 300 | 0 ~ 25.4 | ± 70 | 10 | 10 | 0.2 | * | 20 | -60 ~ +60 |
| G300 | 25.4 ~ 50.8 | ± 105 | 15 | 15 | 0.2 | * | 30 | -90 ~ +90 |
| G 300 | 50.8 ~ 75 | ± 140 | 20 | 20 | 0.2 | * | 40 | -120 ~ +120 |
| G 500 | 0 ~ 25.4 | ± 75 | 25 | 25 | * | * | 50 | -50 ~ +50 |
| G 500 | 25.4 ~ 50.8 | ± 112.5 | 25 | 25 | * | * | 75 | -75 ~ +75 |
| G 500 | 50.8 ~ 75 | ± 150 | 25 | 25 | * | * | 100 | -100 ~ +100 |
| G 500 | 75 ~ 100 | ± 187.5 | 32 | 32 | * | * | 125 | -125 ~ +125 |
| G 500 | 100 ~ 125 | ± 225 | 38 | 38 | * | * | 150 | -150 ~ +150 |
| G 500 | 125 ~ 150 | ± 262.5 | 44 | 44 | * | * | 175 | -175 ~ +175 |
| G 600 | all | ± 200 | * | * | * | * | * | * |
| G 700 | all | ± 1000 | * | * | * | * | * | * |
| ABMA Std. 10A - 2001 | |||||
| Grade | VDws(≤) | ∆RSw(≤) | Ra(≤) | VDwL(≤) | (μm) |
| (μm) | (μm) | (μm) | (μm) | ||
| G3A | 0.08 | 0.08 | 0.012 | 0.13 | * |
| G5A | 0.13 | 0.13 | 0.02 | 0.25 | * |
| G10A | 0.25 | 0.25 | 0.025 | 0.5 | * |
| G16A | 0.4 | 0.4 | 0.025 | 0.8 | * |
| G24A | 0.6 | 0.6 | 0.05 | 1.2 | * |
| G48A | 1.2 | 1.2 | 0.08 | 2.4 | * |
| G100A | 2.5 | 2.5 | 0.125 | 5 | ±12.5 |
| G200A | 5 | 5 | 0.2 | 10 | ±25 |
| G500A | 13 | 13 | * | 25 | ±50 |
| G1000A | 25 | 25 | * | 50 | ±125 |
| G2000A | 50 | 50 | * | 100 | ±250 |
