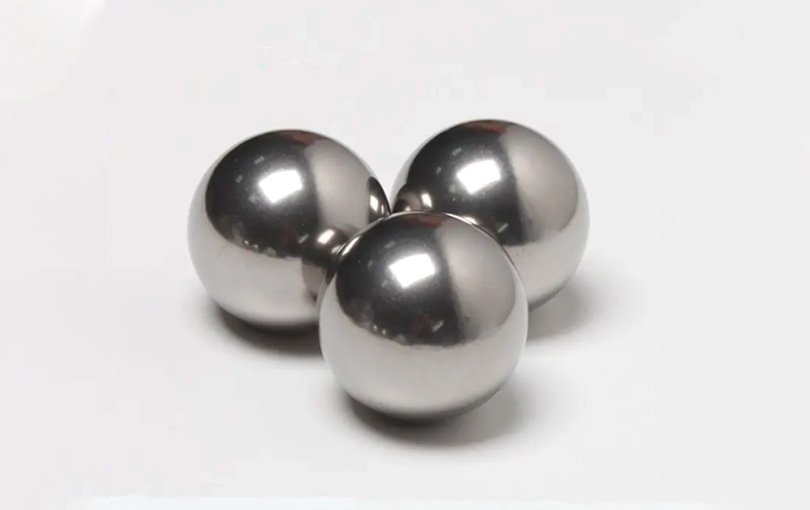

1010 Carbon steel ball
Production Range：
● 1.0MM-80MM
Production Grade:
● G40-G1000
Applications：
● Caster wheel ● Slide
● Bearig ● Toy
● Grindig media
Product Details
1010 is a type of low-carbon steel that boasts excellent machinability, weldability, deformability, and strength.
EDE Company is capable of producing both hardened balls and soft balls using this material.
Additionally, we can provide environmentally friendly electroplating services tailored to the needs of our customers, thus meeting the requirements of various industries.
| Approximate material | |||||||||||
| Material | Number Designtion | Chemical Composition （%） | |||||||||
| C | Si | Mn | P | S | Cr | Ni | Cu | AS | N | ||
| 1010 C10 | 1.0301 1.1121 | 0.08 - 0.13 | / | 0.3 - 0.6 | 0 - 0.03 | 0 - 0.05 | / | / | / | / | / |
| Q195 | 0 - 0.12 | 0 - 0.3 | 0 - 0.5 | 0 - 0.035 | 0 - 0.04 | 0 - 0.3 | 0 - 0.3 | 0 - 0.3 | 0 - 0.08 | 0 - 0.008 | |
| 1015 C15 | 1.0401 1.1141 | 0.08 - 0.13 | / | 0.3 - 0.6 | 0 - 0.03 | 0 - 0.05 | / | / | 0 - 0.2 | / | / |
| Q235 | 0 - 0.22 | 0 - 0.35 | 0 - 1.4 | 0 - 0.045 | 0 - 0.05 | 0 - 0.3 | 0 - 0.3 | 0 - 0.3 | 0 - 0.08 | 0 - 0.008 | |
| 1085 C86D | 1.0616 | 0.8 - 0.93 | 0.15 - 0.35 | 0.7 - 1 | 0 - 0.03 | 0 - 0.05 | / | / | / | / | / |
| SWRH82B | 0.79 - 0.86 | 0.15 - 0.35 | 0.6 - 0.9 | 0 - 0.03 | 0 - 0.03 | / | / | / | / | / | |
| DIN 5401-2002 | ||||||||
| Dimensional and formt tolerance and surface roughness | ||||||||
| Grade | Nominal Size | Limit deviations | tDws | ∆RSw(≤) | Ra(≤) | VDwL(≤) | IG | Preferred gauges values |
| VDws (≤) | ||||||||
| (mm) | (μm) | (μm) | (μm) | (μm) | (μm) | (μm) | (μm) | |
| G 3 | 0 ~ 12.7 | ± 5.32 | 0.08 | 0.08 | 0.01 | 0.13 | 0.5 | -5 ~ +5 |
| G 5 | 0 ~ 12.7 | ± 5.63 | 0.13 | 0.13 | 0.014 | 0.25 | 1 | -5 ~ +5 |
| G 10 | 0 ~ 25.4 | ± 9.75 | 0.25 | 0.25 | 0.02 | 0.5 | 1 | -9 ~ +9 |
| G 16 | 0 ~ 25.4 | ± 11.4 | 0.4 | 0.4 | 0.025 | 0.8 | 2 | -10 ~ +10 |
| G 20 | 0 ~ 38.1 | ± 11.5 | 0.5 | 0.5 | 0.032 | 1 | 2 | -10 ~ +10 |
| G 28 | 0 ~ 50.8 | ± 13.7 | 0.7 | 0.7 | 0.05 | 1.4 | 2 | -12 ~ +12 |
| G 40 | 0 ~ 100 | ± 19 | 1 | 1 | 0.06 | 2 | 4 | -16 ~ +16 |
| G 80 | 0 ~ 100 | ± 14 | 2 | 2 | 0.1 | * | 4 | -12 ~ +12 |
| G 100 | 0 ~ 150 | ± 47.5 | 2.5 | 2.5 | 0.1 | 5 | 10 | -40 ~ +40 |
| G 200 | 0 ~ 150 | ± 72.5 | 5 | 5 | 0.15 | 10 | 10 | -60 ~ +60 |
| G 300 | 0 ~ 25.4 | ± 70 | 10 | 10 | 0.2 | * | 20 | -60 ~ +60 |
| G300 | 25.4 ~ 50.8 | ± 105 | 15 | 15 | 0.2 | * | 30 | -90 ~ +90 |
| G 300 | 50.8 ~ 75 | ± 140 | 20 | 20 | 0.2 | * | 40 | -120 ~ +120 |
| G 500 | 0 ~ 25.4 | ± 75 | 25 | 25 | * | * | 50 | -50 ~ +50 |
| G 500 | 25.4 ~ 50.8 | ± 112.5 | 25 | 25 | * | * | 75 | -75 ~ +75 |
| G 500 | 50.8 ~ 75 | ± 150 | 25 | 25 | * | * | 100 | -100 ~ +100 |
| G 500 | 75 ~ 100 | ± 187.5 | 32 | 32 | * | * | 125 | -125 ~ +125 |
| G 500 | 100 ~ 125 | ± 225 | 38 | 38 | * | * | 150 | -150 ~ +150 |
| G 500 | 125 ~ 150 | ± 262.5 | 44 | 44 | * | * | 175 | -175 ~ +175 |
| G 600 | all | ± 200 | * | * | * | * | * | * |
| G 700 | all | ± 1000 | * | * | * | * | * | * |
| ABMA Std. 10A - 2001 | |||||
| Grade | VDws(≤) | ∆RSw(≤) | Ra(≤) | VDwL(≤) | (μm) |
| (μm) | (μm) | (μm) | (μm) | ||
| G3A | 0.08 | 0.08 | 0.012 | 0.13 | * |
| G5A | 0.13 | 0.13 | 0.02 | 0.25 | * |
| G10A | 0.25 | 0.25 | 0.025 | 0.5 | * |
| G16A | 0.4 | 0.4 | 0.025 | 0.8 | * |
| G24A | 0.6 | 0.6 | 0.05 | 1.2 | * |
| G48A | 1.2 | 1.2 | 0.08 | 2.4 | * |
| G100A | 2.5 | 2.5 | 0.125 | 5 | ±12.5 |
| G200A | 5 | 5 | 0.2 | 10 | ±25 |
| G500A | 13 | 13 | * | 25 | ±50 |
| G1000A | 25 | 25 | * | 50 | ±125 |
| G2000A | 50 | 50 | * | 100 | ±250 |
